Jean Müller KETO-00-3/F 160A NH00 Yük Ayırıcı
Paylaş

Jean Müller KETO-00-3/F 160A NH00 Yük Ayırıcı

(0 Yorum) | Yorum Yap
Kategori
Yük Ayırıcılar
Marka
Diğer
Üretici Kodu
34077.0000
Garanti Süresi
18 Ay
Fiyat
17,55 EUR + KDV
Havale
1.038,64 TL (%3,00 havale indirimi)
1.070,76 TL
115,89 TL den başlayan taksitlerle!
Paylaş
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Ürün Bilgisi

Product details

Print data sheet

Type designation: KETO-00-3/F

Article number: T500113002

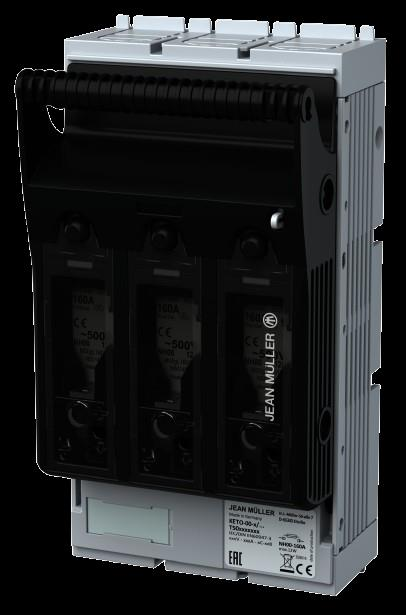

Images

(Illustration similar)

Description

according to EN60947-3, size NH00 - 160A, 3pole
for baseplate mounting
with universal terminal M8 x 16/2 x M5
cable terminal at top and bottom side
new design (black switching handle)

Features

Type:
KETO-00-3/F
Total power loss at Ith (without fuse-link) Pv:
9 W
Product Lifecycle:
Active product
Rated operating voltage Ue:
690 V
Rated operating current Ie:
160 A
Product standard:
IEC/DIN EN60947-3
Conv. free air thermal current with fuse-links Ith:
160 A
Conv. free air thermal current with solid links:
250 A
Size:
NH00
Rated frequency:
50 - 60 Hz
Rated isolation voltage Ui:
1,000 V
Nominal current with fuse:
NH00-160A
Max. permissible power dissipation per fuse-link:
12 W
Power loss at 80% Ith (without fuse-link):
5.8 W
Rated conditional short-cirquit current Icc:
120 (AC 500V) kA
Rated impulse voltage Uimp:
8 kV
Rated short-time withstand current Icw(kA):
5
Utilization category 1:
690V - 160A - AC-21B
Utilization category 2:
400V - 160A - AC-23B
Utilization category 3:
250V - 160A - DC-22B
Ambient temperature:
-25 up to +70 (Attention derating of rated current required) °C
Altitude:
2000 m
Pollution degree:
3
Overvoltage category:
III
Mounting position:
vertical / horizontal
Electrical endurance (switching cycles):
200
Mechanical endurance (total switching cycles):
1,600
Material properties:
Unterteil:
Temperaturbeständigkeit bis 125°C
Selbsverlöschend nach UL94
Kriechstromfestigkeit CTI 600
Halogenfrei

Schutzabdeckungen, Schaltdeckel:
Temperaturbeständigkeit bis 125°C
Selbsverlöschend nach UL94
Kriechstromfestigkeit CTI 600
Halogenfrei

Sicherungsaufnahmekontakte:
E-Cu, versilbert, fremdbefedert
Degree of protection, Front side device fitted with clamp- and lateral cover:
IP20C
Applicable for fuse-links:
NH000, NH00
Cable terminal:
Universal terminal M8 / 2 x M5
Type of installation:
Baseplate mounting
Poles:
3
Fuse monitoring:
None
Hight:
195 mm
Width:
106 mm
Depth:
84 mm
Direction of cable terminal:
variable
ETIM - Code:
EC001040
